Zeeline ZE1040UL - 1" Double Diaphragm Pump
by Zeeline

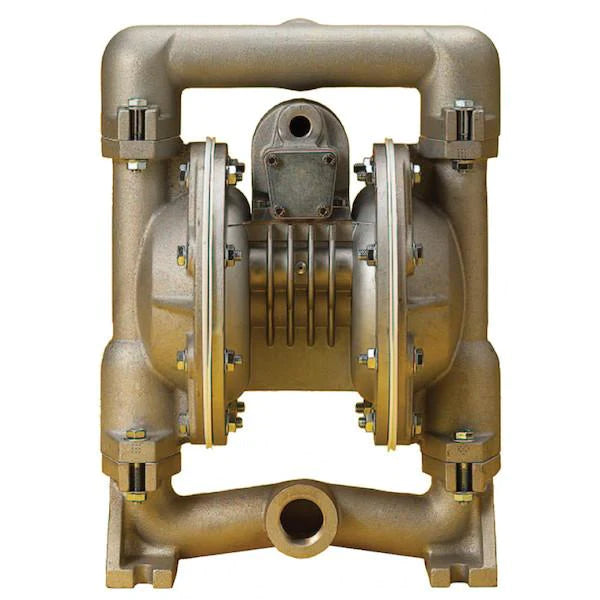

Zeeline ZE1040UL - 1" Double Diaphragm Pump

SKU ZE1040UL
Save 10% Save 10%
$1,984.70
$1,984.70 - $1,984.70
$1,984.70
$1,779.08
$1,779.08 - $1,779.08
$1,779.08

1" Double Diaphragm Pump

Warning! This item is not suitable for flammable liquids

 Specifications

  • Air Ratio: 1:1
  • Fluid Inlet/Outlet: 1" NPT
  • Max Flow: 37 GPM
  • Air Inlet Port: 1/4" NPT
  • Body Construction: Aluminum
  • Diaphragms: Buna N
  • Balls: PTFE
  • Seats: Aluminum
  • UL Listed: Yes
  • Air Consumption: 30CFM @ 50 PSI
  • Bolt Pattern: 4.250" X 8.250"
  • Height: 15.125"
  • Max Particle Size: 1/8"
  • Suction Lift- Dry: 15'
  • Suction Lift- Wet: 25'
